Salford City

AEC Reliance  TRJ 109



This is the renovation project we are currently working on. It was new to Salford City in February 1962 it has a Weymann B45F body No M187, AEC 470 engine and chassis No AEC Re 2MU3RV3870. It is believed to be the only surviving single deck Salford City bus and we hope to have it completed sometime in 2014 & on the road for 2015, although it is proving a very challenging project. We have had a real problem with the engine, the original engine was completely worn out and was just not worth rebuilding so we acquired a second hand "supposedly sound engine" and this also turned out totally useless. We managed to find another engine and after putting it in the bus it ran and sounded ok, after a few runs "disaster" the water had mixed with the oil therefor one or more of the piston liners was porous and worn out. Well by this time we where getting a bit fed up and AEC 470 engines are not exactly easy to come by "good ones anyway". So we decided no more wasting time with duff engines so we stripped it down and replaced the worn out parts with brand new piston liners and O rings, full set of pistons and rings and full set of fuel injectors "yes very expensive". After rebuilding the engine it now runs and sounds beautiful. All the brakes where seized solid so we stripped them all down for full renovation and are now in good order. We have also replaced the old clutch with new clutch, cylinders and all pipework. All seats where taken out  and have been renovated and repainted and are now back in the bus. The next job is now underway to repanel the bus with new aluminium, all the woodwork that the aluminium beading screws into has been renewed with brand new hardwood to make this job easier.

I will update this page as and when we make progress.

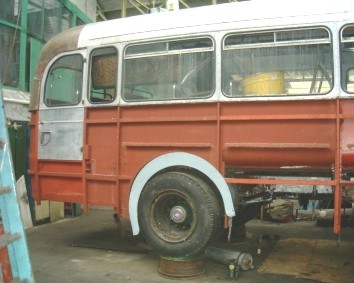

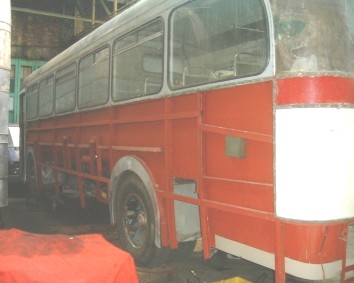

    Nearside                                                                      Offside

salford n side.jpg (25095 bytes)  salford off side.jpg (32478 bytes)

        Engine                                                                  Inside Towards The Back

salford engine.jpg (27995 bytes)  Sal Inside.jpg (36775 bytes)

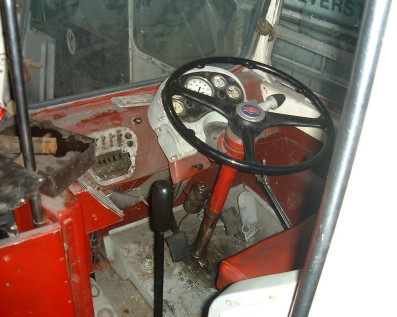

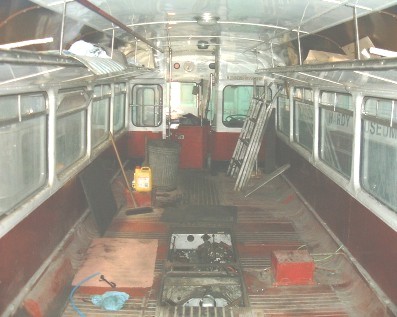

   Drivers Cab                                                                Inside Towards The Front

Sal Cab.jpg (39556 bytes)  Sal In Front.jpg (40173 bytes)

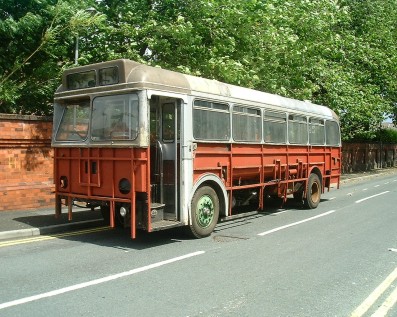

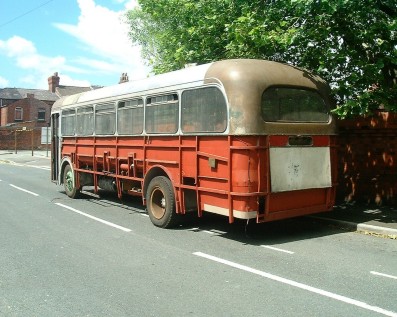

   Sunday 21/07/2002 This is the first time since 1986 that the bus has moved under its own power

salford front museum.jpg (57326 bytes)  salford rear museum.jpg (47915 bytes)

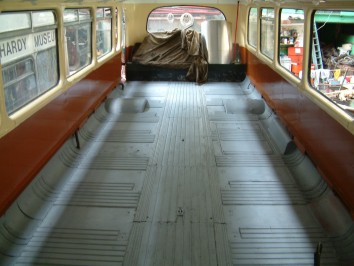

Work on the inside has now nearly finished

Salford floor small1.jpg (28865 bytes)                  salford seats small.jpg (29042 bytes)

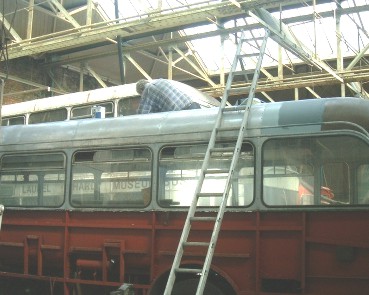

     Frank paint strips the roof                                                                  Underneath painted silver

sal roof.jpg (40336 bytes)          salford silver.jpg (30965 bytes)

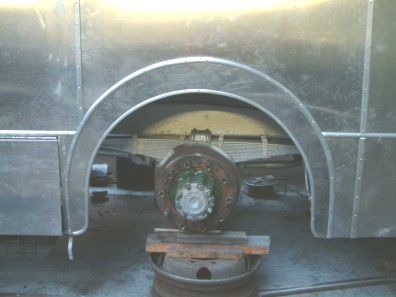

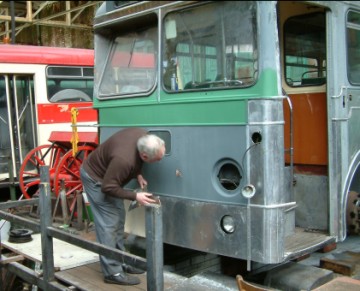

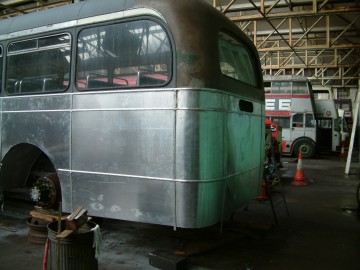

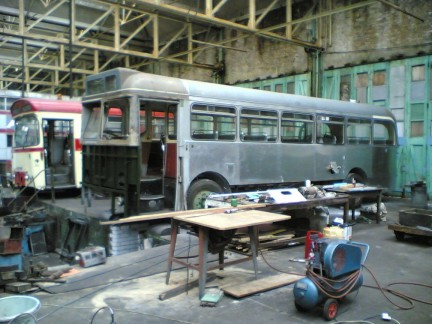

New aluminium panels fitted

salford ally ns.jpg (51832 bytes)       salford ally front.jpg (33622 bytes)

Salford o side.jpg (34524 bytes)      Salford back.jpg (29753 bytes)

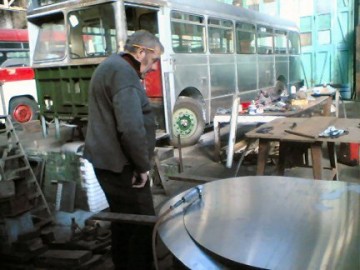

salford nibbler.jpg (41590 bytes)     SAL 12 DEC 2004 (11).jpg (26319 bytes)

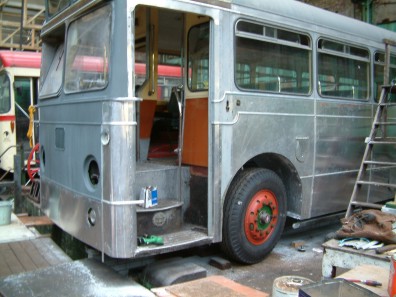

salford door entrance.jpg (39325 bytes)          SAL 12 DEC 2004 (5).jpg (41176 bytes)

    Copy of 2.1.05 (2).jpg (37140 bytes)                Copy of 2.1.05.jpg (38059 bytes)

sal 9.1.2005 (6).jpg (93434 bytes)

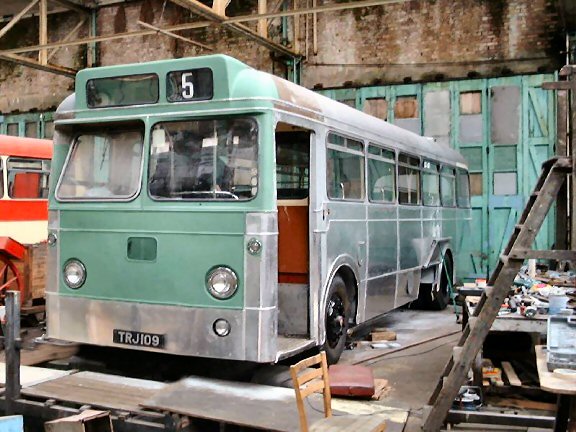

Copy of sal lights.jpg (77519 bytes)

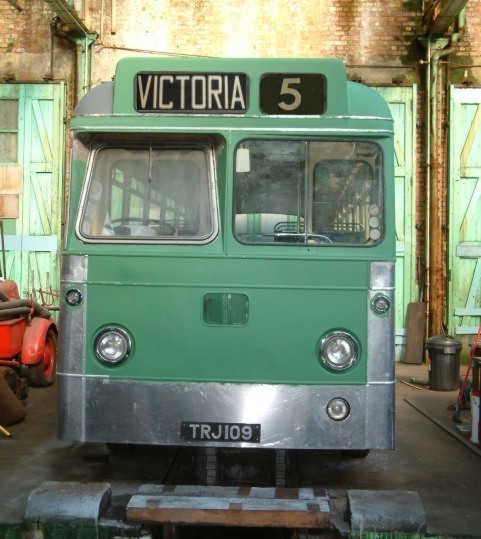

Copy of 23.1.2005 s (4).jpg (80314 bytes)

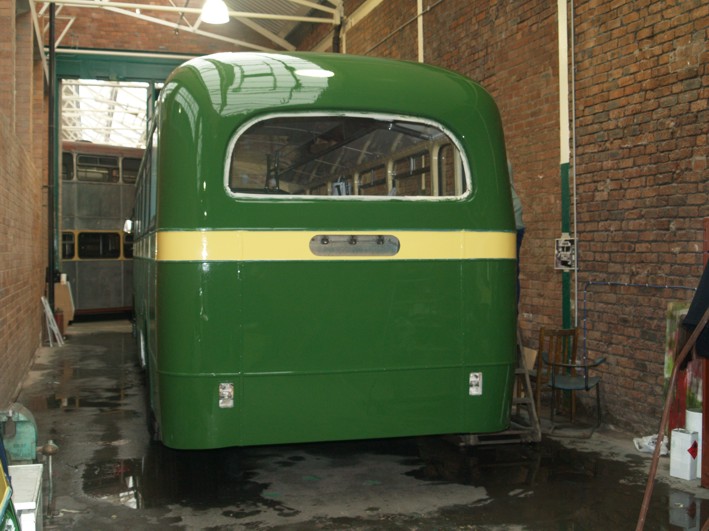

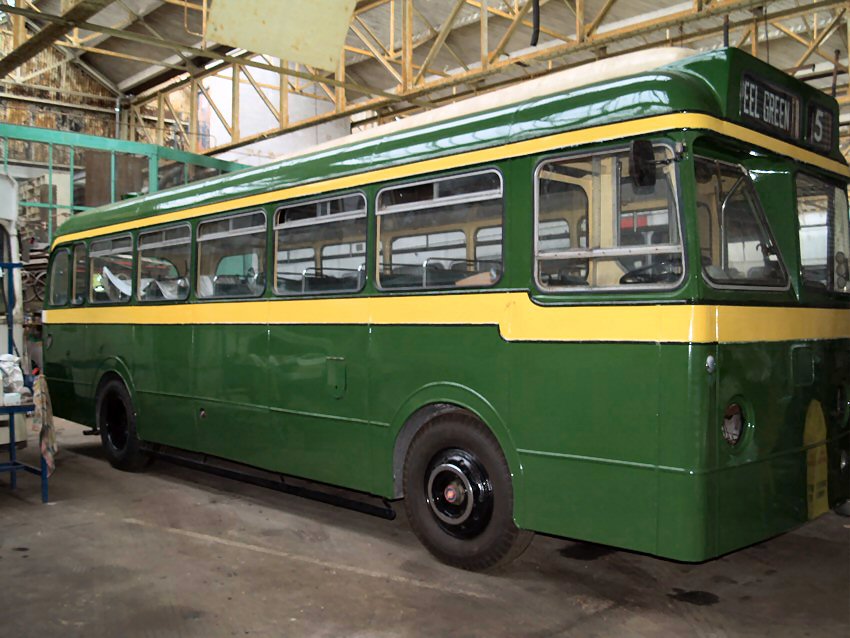

Nearly Done At Long Last.
